De enkele motorcommutator voor AC-motor is vrij van luchtbellen, scheuren of bramen in het oppervlak.
Spanningstest: bar tot bar bij 500V, 1s, bar tot boring bij 1500V, 1 min, zonder storing of knipperen.
Spin-test: doe een spin-test voor de commutator onder 140 Celsius, 5000 RPM, 3 min. Na het testen is de maximale afwijking van de buitendiameter 0,015, die van staaf en staaf is 0,005.
Isolatieweerstand: 500V, meer dan 50MΩ
Onderdeelnr. |
VREEMD) |
ID (d) |
Totale O D (D1) |
staaf nr (N) |
Staaflengte (L1) |
Totale lengte (L) |
JZQE-RS12-148 |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148B |
63 |
20 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-148C |
63 |
13.2 |
73 |
24 |
16 |
26.5 |
JZQE-RS12-149 |
40 |
15 |
43 |
43 |
10 |
18.2 |
JZQE-RS31-150 |
44 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150B |
44 |
12.35 |
23 |
10 |
12.5 |
|
JZQE-RS31-150C |
44 |
12.06 |
23 |
10 |
12.5 |
|
JZQE-RS31-150D |
44.2 |
12.08 |
23 |
10 |
12.5 |
|
JZQE-RS31-150E |
44 |
12 |
23 |
10 |
12.5 |
|
JZQE-RS12-151 |
47.6 |
13.2 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151B |
47.6 |
13.2 |
57 |
16 |
14 |
22 |
JZQE-RS12-151C |
47.6 |
13 |
57 |
16 |
14 |
24.5 |
JZQE-RS12-151D: |
47.6 |
13 |
57 |
16 |
14 |
22 |
JZQE-RS12-151E |
47.6 |
13.4 |
57 |
16 |
14 |
24.5 |
JZQE-RS31-169 |
38 |
12.08 |
26 |
10 |
14.3 |
|
JZQE-RS12-193 |
74 |
33 |
85 |
81 |
12 |
12 |
JZQE-RS12-247 |
19.5 |
4 |
7 |
3 |
5.5 |
|
JZQE-RS12-326 |
49 |
13.2 |
16 |
14 |
15 |
|
JZQE-RS32-348 |
58 |
24.1 |
25 |
|||
JZQE-RS32-464 |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464B |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464C |
20.5 |
5 |
24.7 |
8 |
5.7 |
8.5 |
JZQE-RS32-464D: |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS32-464E |
20.5 |
5 |
25 |
8 |
5.7 |
8.5 |
JZQE-RS12-480 |
78 |
23 |
25 |
13 |
23 |
|
JZQE-RS32-508 |
20.5 |
3.175 |
25 |
8 |
4.2 |
8.5 |
JZQE-RS31-525 |
44.2 |
12.08 |
23 |
10 |
13 |
|
JZQE-RS31-525B |
44.2 |
12.35 |
23 |
10 |
13 |
|
JZQE-RS31-525C |
44.2 |
12 |
23 |
10 |
13 |
|
JZQE-RS32-555 |
20.5 |
3 |
24.7 |
8 |
5.7 |
8.6 |
JZQE-RS12-593 |
71.5 |
13.2 |
64 |
24 |
28 |
32.5 |
JZQE-RS11-608 |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS11-608B |
52.5 |
16 |
19 |
6.5 |
16 |
|
JZQE-RS32-618 |
23 |
4 |
28.5 |
10 |
6.5 |
10 |
JZQE-RS32-618B |
22.5 |
4 |
28 |
10 |
6.5 |
10 |
JZQE-RS32-651 |
47.6 |
13 |
56.5 |
16 |
12.5 |
18.5 |
JZQE-RS32-664 |
48 |
13.4 |
57.5 |
16 |
12.5 |
24.5 |
JZQE-RS12-688 |
59 |
24.1 |
58 |
25 |
34.9 |
22 |
JZQE-RS12-689 |
59 |
24.1 |
58 |
25 |
34.9 |
19.5 |
JZQE-RS32-717 |
47.6 |
13.3 |
56.5 |
16 |
12 |
24.77 |
JZQE-RS32-739 |
44.2 |
13.8 |
23 |
10 |
13 |
|
JZQA-RS12-752 |
31 |
11.5 |
40 |
21 |
25.5 |
28 |
JZQB-RS31-792 |
61 |
13.5 |
29 |
9 |
16 |
|
JZQE-RS31-796 |
44.2 |
9 |
23 |
10 |
12.5 |
|
JZQE-RS12-846 |
48.5 |
10.2 |
48.5 |
25 |
6 |
11 |
JZQE-RS32-854 |
47.6 |
13.2 |
56.6 |
16 |
7 |
22 |
JZQE-RS12-907 |
48.5 |
10.2 |
48.5 |
25 |
6 |
10 |
JZQE-RS12-926 |
64 |
20 |
60 |
31 |
5 |
17 |
Deze commutator wordt gebruikt in AC-motor, enkelfasige motor, automotoren, motorfietsstartmotoren, motoren voor elektrisch gereedschap en micro-speciale motoren.

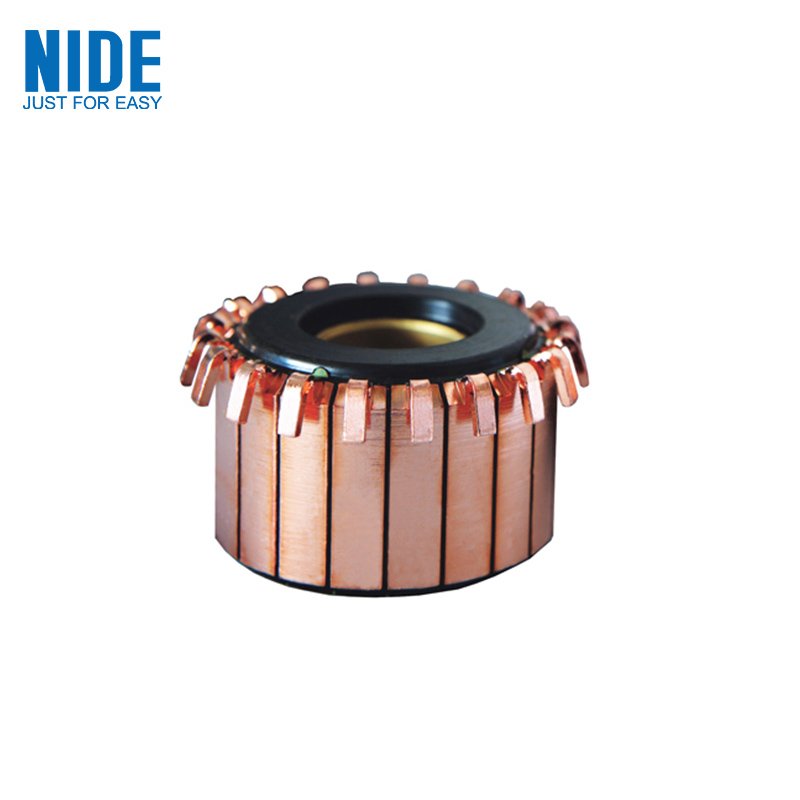

Enkele motorcommutator voor AC-motor
